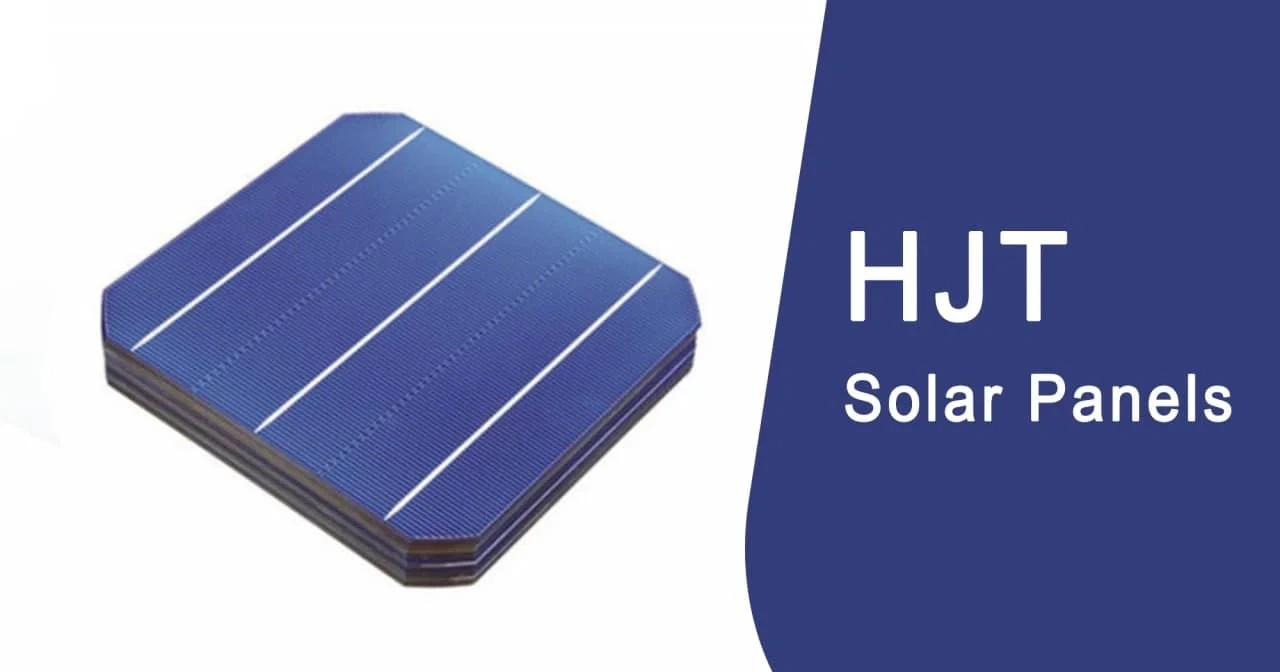

What Are HJT Solar Panels?
Solar technology is developing as the world moves towards renewable energy sources. The introduction of the HJT solar panel, also known as the high efficiency and low degradation solution could be said as one of the most thrilling developments as it is restructuring the solar energy market. What are HJT panels, though, and why are they being touted as the future of photovoltaic (PV) technology?
It is an entry-level article, detailing all you need to know about the HJT solar cell technology, how it works, what its main strengths are, and in what that technology is to be compared to other technologies and how it can be used in the real world.
What Are Heterojunction Technology Solar Panels?
HJT solar panels also known as Heterojunction Technology, panels are new generation photovoltaic modules that integrate two highly advantageous technologies, crystalline silicon and thin film amorphous silicon, layers into a single panel.
In essence, the HJT panels are manufactured on a monocrystalline silicon wafer embedded between amorphous silicon layers. The light absorption and electron flow is boosted drastically by this unique hybrid space that leads to further efficiency and stability.
Structure of an HJT Solar Cell:
-
N type Monocrystalline Silicon Wafer: Made with high carrier lifetime and imperviousness to dark-driven deterioration.
-
Intrinsic Amorphous Silicon Thin Layer: A passivation layer is used to decrease electron recombination.
-
Doped Amorphous Silicon Layers: Ameliorate the conductivity and collect the charges.
-
Transparent Conductive Oxide (TCO): Increases light harvester and minimizes a reflection on the surface.
How HJT Solar Panels Work:
HJT solar panels feature a tri-layered design:
-
Top Layer: The sunlight is captured by the amorphous silicon before it gets to the crystalline layer and reflects light as well.
-
Middle Layer: Monocrystalline N-type silicon traps the major part of the sunlight and transforms it into electricity due to its carrier mobility and high efficiency.
-
Bottom Layer: This is another amorphous silicon layer which collects any additional photons with a minimal loss of energy.
Such a combination enables HJT solar cells to go up to 25% or more efficiency, which surpasses most common technologies. Also, the majority of HJT panels are designed as bifacial panels, capable of producing electricity on both ends, including the back, using a reflection of sunlight off surfaces such as the ground or nearby buildings.

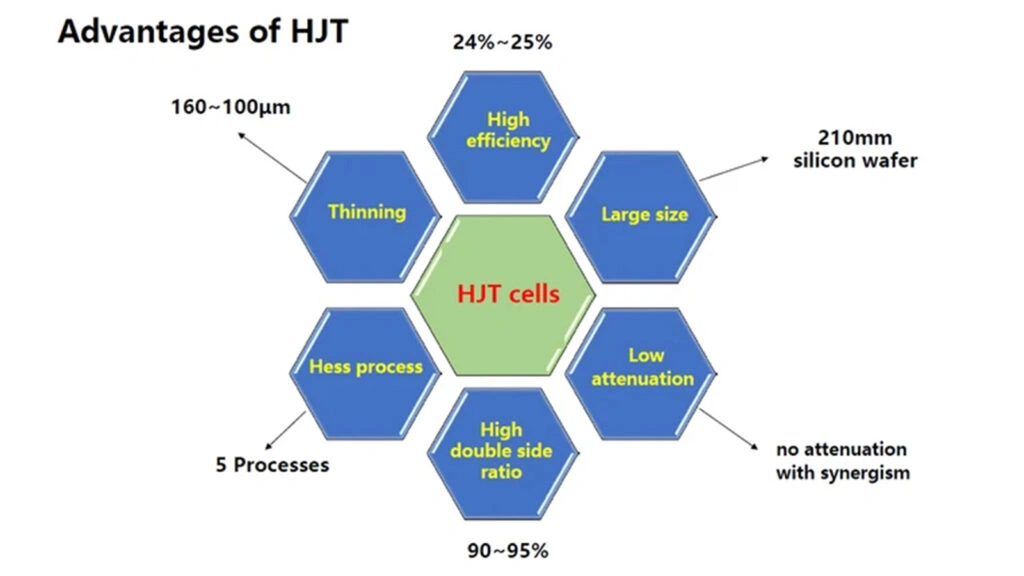

Key Features and Advantages of HJT Solar Panels
-
High Efficiency: HJT solar cell technology regularly achieves conversion rates above 25%, making it one of the most efficient options in the market.
-
Bifacial Power Generation: With symmetrical design and transparent dual-glass construction, HJT bifacial photovoltaic panels can generate up to 95% of their front-side power from the rear, increasing total energy yield by more than 30% in optimal conditions.
-
Superior Low-Light Performance: HJT solar modules maintain high output even during cloudy days, early mornings, and late evenings, thanks to their advanced passivation and high open-circuit voltage.
-
Durability and Longevity: These panels are engineered with robust materials, double-glass layers, and advanced encapsulation, offering warranties up to 30 years and excellent resistance to weather, corrosion, and potential-induced degradation (PID).
-
Aesthetic Appeal: Many HJT panels feature a full-black design with no color difference between the front and back, making them ideal for modern rooftops and architectural integration.
HJT vs. Other Solar Panel Technologies
| Feature | HJT Solar Panels | PERC Panels | TOPCon Panels |
| Efficiency | 25%+ | 22%–23% | 23%–24% |
| Bifacial Capability | Up to 95% rear output | ~70% rear output | ~85% rear output |
| Low-Light Performance | Excellent | Good | Very Good |
| Degradation Rate | Very Low | Moderate | Low |
| Cost | Higher | Moderate | Moderate-High |
HJT panels outperform PERC solar panel and TOPCon in efficiency, bifaciality, and durability, making them a premium option for those seeking maximum performance.

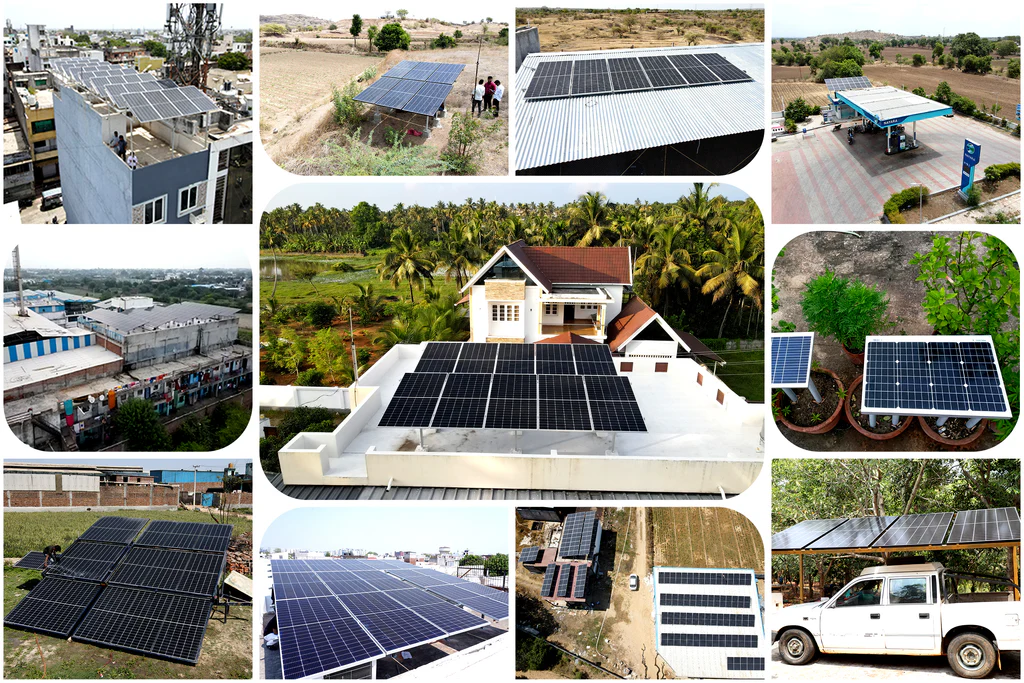

Applications of HJT Solar Panels
HJT solar modules are versatile and suitable for a wide range of applications:
-
Residential Rooftops: Their high efficiency and sleek design make them perfect for homes with limited roof space or aesthetic requirements.
-
Commercial and Industrial Installations: Businesses benefit from the higher energy yield and long-term reliability, reducing operational costs.
-
Agricultural and Specialty Uses: HJT panels excel in agricultural settings, such as greenhouses or carports, where bifacial power generation and low-light performance are critical.
How to Choose the Right HJT Solar Panel
When selecting an HJT solar module, consider:
-
Efficiency Ratings: Look for panels with high conversion rates for maximum output.
-
Warranty and Reliability: Opt for brands offering long-term product and performance guarantees.
-
Installation Needs: Ensure compatibility with your mounting system and site conditions.
-
Aesthetics: Choose full-black or bifacial designs if appearance matters for your project.
Conclusion
HJT solar panels represent the next generation of photovoltaic technology, offering unmatched efficiency, durability, and versatility. Whether for homes, businesses, or specialized applications, these panels are paving the way for a cleaner, more sustainable energy future. As HJT solar cell technology continues to evolve, it promises even greater performance and accessibility for solar adopters worldwide.
At Sunify Solar, we are proud to be at the forefront of this innovation as a trusted manufacturer and supplier of Bifacial & Monofacial solar panels. Our commitment to quality, sustainability, and customer satisfaction ensures that every panel we deliver is built to last and optimized for performance.
People Also Ask
1. What is the efficiency of HJT solar panels?
HJT solar panels regularly achieve efficiencies above 25%, making them among the most efficient commercially available modules.
2. Are HJT solar panels suitable for homes?
Yes, HJT panels are ideal for residential installations, especially where space is limited or high energy yield is desired.
3. How long do HJT panels last?
With robust construction and advanced encapsulation, HJT panels often come with warranties of up to 30 years and are designed for long-term reliability.
4. What makes HJT panels different from other types?
HJT panels combine crystalline and thin-film technologies, resulting in higher efficiency, superior bifacial performance, and better low-light output compared to standard modules.
